Name: DEHNmid MV arrester Ur: 30kV In: 10kA line disch. class 1 incr. creepage path
Brand: DEHN
SKU: 990206

DEHNmid MV arrester Ur: 30kV In: 10kA line disch. class 1 incr. creepage path Zoomed Image

DEHNmid MV arrester Ur: 30kV In: 10kA line disch. class 1 incr. creepage path

Teknik Veriler

Ana Özellikler

Model

With screen

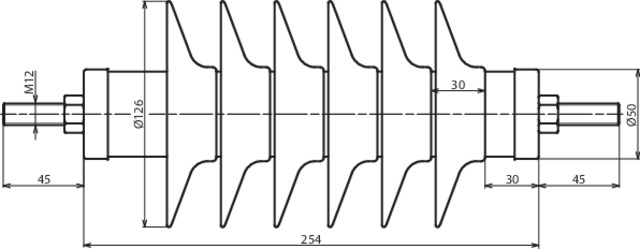

Height

254 mm

Application

Exterior area

Rated voltage AC

30 kV

Continuous voltage AC

24 kV

Creepage path

680 mm

Continuous voltage DC

Rated voltage DC

İndirilenler

Deeplink product page

Circuit diagram

Mounting instruction

Product data sheet

DEHNmid MV arrester Ur: 30kV In: 10kA line disch. class 1 incr. creepage path

DEHNmid medium-voltage arrester for protecting transformers, switchgear installations and transmission lines against atmospheric and switching overvoltage as per IEC / EN 60099-4. High-temperature vulcanised silicone housing for outdoor use prevents the formation of water and pollution layers. Long service life thanks to powerful metal oxide varistors.

Ürün detayları

SKU Kodu: 990206

EAN Kodu: 4013364102996

Minimum sipariş: 1
