Name: DEHNmid MV arrester Ur: 6kV In: 10kA line disch. class 1 normal creepage path
Brand: DEHN
SKU: 990102

DEHNmid MV arrester Ur: 6kV In: 10kA line disch. class 1 normal creepage path Zoomed Image

DEHNmid MV arrester Ur: 6kV In: 10kA line disch. class 1 normal creepage path

Teknik Veriler

Ana Özellikler

Model

With screen

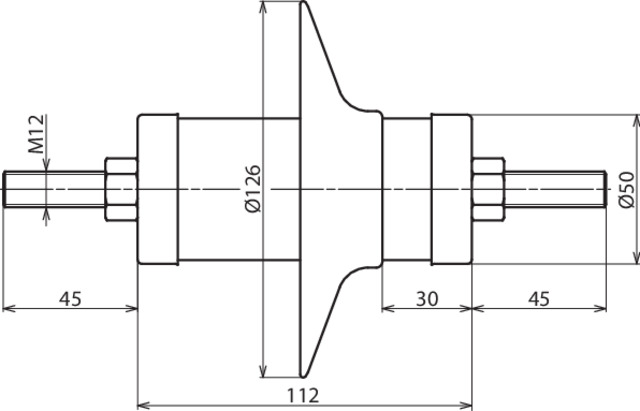

Height

112 mm

Application

Exterior area

Rated voltage AC

6 kV

Continuous voltage AC

4.8 kV

Creepage path

163 mm

Continuous voltage DC

Rated voltage DC

İndirilenler

Deeplink product page

Circuit diagram

Mounting instruction

Product data sheet

DEHNmid MV arrester Ur: 6kV In: 10kA line disch. class 1 normal creepage path

DEHNmid medium-voltage arrester for protecting transformers, switchgear installations and transmission lines against atmospheric and switching overvoltage as per IEC / EN 60099-4. High-temperature vulcanised silicone housing for outdoor use prevents the formation of water and pollution layers. Long service life thanks to powerful metal oxide varistors.

Ürün detayları

SKU Kodu: 990102

EAN Kodu: 4013364102774

Minimum sipariş: 1
