Name: DEHNmid MV arrester Ur: 42kV In: 10kA line disch. class 1 normal creepage path
Brand: DEHN
SKU: 990115

DEHNmid MV arrester Ur: 42kV In: 10kA line disch. class 1 normal creepage path Zoomed Image

DEHNmid MV arrester Ur: 42kV In: 10kA line disch. class 1 normal creepage path

Teknik Veriler

Ana Özellikler

Model

With screen

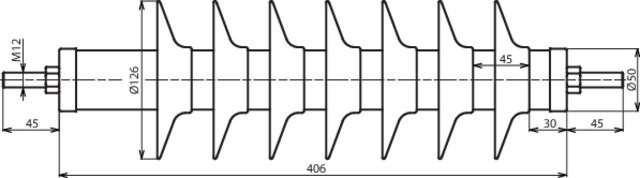

Height

406 mm

Application

Exterior area

Rated voltage AC

42 kV

Continuous voltage AC

33.6 kV

Creepage path

907 mm

İndirilenler

Deeplink product page

Circuit diagram

Mounting instruction

Product data sheet

DEHNmid MV arrester Ur: 42kV In: 10kA line disch. class 1 normal creepage path

DEHNmid medium-voltage arrester for protecting transformers, switchgear installations and transmission lines against atmospheric and switching overvoltage as per IEC / EN 60099-4. High-temperature vulcanised silicone housing for outdoor use prevents the formation of water and pollution layers. Long service life thanks to powerful metal oxide varistors.

Ürün detayları

SKU Kodu: 990115

EAN Kodu: 4013364102903

Minimum sipariş: 1
