Name: DEHNmid MV arrester Ur: 51kV In: 10kA line disch. class 1 incr. creepage path
Brand: DEHN
SKU: 990214

DEHNmid MV arrester Ur: 51kV In: 10kA line disch. class 1 incr. creepage path Zoomed Image

DEHNmid MV arrester Ur: 51kV In: 10kA line disch. class 1 incr. creepage path

Teknik Veriler

Ana Özellikler

Model

With screen

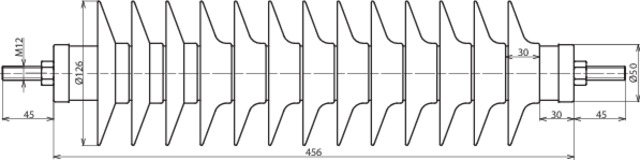

Height

456 mm

Application

Exterior area

Rated voltage AC

51 kV

Continuous voltage AC

40.8 kV

Creepage path

1407 mm

İndirilenler

Deeplink product page

Circuit diagram

Mounting instruction

Product data sheet

DEHNmid MV arrester Ur: 51kV In: 10kA line disch. class 1 incr. creepage path

DEHNmid medium-voltage arrester for protecting transformers, switchgear installations and transmission lines against atmospheric and switching overvoltage as per IEC / EN 60099-4. High-temperature vulcanised silicone housing for outdoor use prevents the formation of water and pollution layers. Long service life thanks to powerful metal oxide varistors.

Ürün detayları

SKU Kodu: 990214

EAN Kodu: 4013364103078

Minimum sipariş: 1
