Name: Voltage-controlled decoupler
Brand: DEHN
SKU: 923401

Voltage-controlled decoupler Zoomed Image

Teknik Veriler

Ana Özellikler

Transient discharge current (10/350 µs)

100 kA

Transient discharge current (8/20 µs)

100 kA

Temporary discharge current to 1 s (16.7 Hz, 50 Hz, 60 Hz)

500 A

Max. long-duration limiting voltage

50 V

İndirilenler

Deeplink product page

Voltage-controlled decoupler

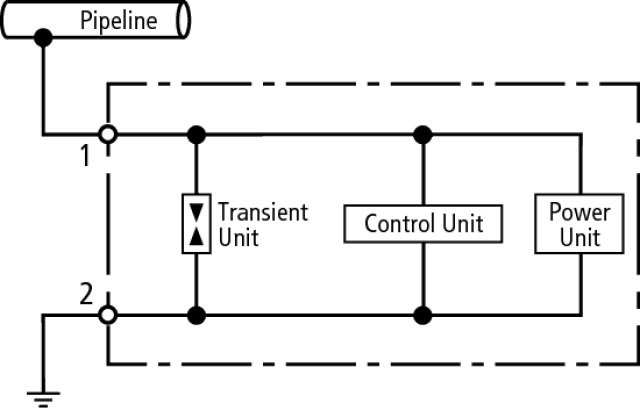

Voltage-controlled smart decoupling device for protection of widely distributed and highly networked systems (e.g. pipelines). With adjustable response threshold and integrated interfaces for measurement and control.

Ürün detayları

SKU Kodu: 923401

EAN Kodu: 4013364237766

Minimum sipariş: 1

Teknik Veriler

Ana Özellikler

Transient discharge current (10/350 µs)

100 kA

Transient discharge current (8/20 µs)

100 kA

Temporary discharge current to 1 s (16.7 Hz, 50 Hz, 60 Hz)

500 A

Max. long-duration limiting voltage

50 V

İndirilenler

Deeplink product page
