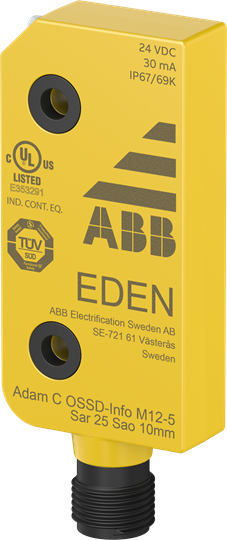

Adam C OSSD-Info M12-5 Sensor
Adam safety sensor unit with OSSD signals and information output. M12-5 male connector, IP69K, yellow. 4pcs of DA 1B distance plates and 4pcs of DA 2B distance rings are included. Coated PCBA for extra protection in demanding environments.
Ürün kimlikleri
SKU: 2TLA020051R5401
EAN: 7350024486612
GTIN: 7350024486612
MPN: Adam C OSSD-Info M12-5
Kategoriler
Özellikler
|
EFI02386
|
-|-
|
|
EFI03647
|
-
|
|
EFI04011
|
-
|
|
EFI04012
|
-
|
|
EFI07094
|
-
|
|
EFI07111
|
-
|
|
EFI07283
|
-
|
|
EFI07334
|
-
|
|
Voltage type
|
DC
|
|
Width sensor
|
30 mm
|
|
Coating housing
|
Uncoated
|
|
Diameter sensor
|
-
|
|
Height of sensor
|
75.2 mm
|
|
Housing material
|
Plastic
|
|
Length of sensor
|
12 mm
|
|
Type of actuation
|
Transponder
|
|
Switching distance
|
15 mm
|
|
Ambient temperature
|
-40 - 70 °C
|
|
Min. output current
|
-
|
|
With status indication
|
evet
|
|
Rated supply voltage DC
|
24 - 24 V
|
|
Type of switching output
|
PNP
|
|
Construction type housing
|
Special construction
|
|
Degree of protection (IP)
|
IP67
|
|
SIL according to IEC 61508
|
3
|
|
Degree of protection (NEMA)
|
-
|
|
Type of electric connection
|
Connector M12
|
|
Protected switch distance ON
|
10 mm
|
|
Protected switch distance OFF
|
25 mm
|
|
Rated supply voltage AC 50 Hz
|
|
|
Rated supply voltage AC 60 Hz
|
|
|
Suitable for safety functions
|
evet
|
|
Explosion safety category for gas
|
None
|
|
Explosion safety category for dust
|
None
|
|
Max. output current at protected output
|
0.05 mA
|
|
Mechanical mounting condition for sensor
|
Not flat
|
|
Number of protected semiconductor outputs
|
-
|
|
Type of interface for safety communication
|
Other
|
|
Cross-/short circuit identification possible
|
evet
|
|
Number of protected contact energized outputs
|
-
|
|
Performance level according to EN ISO 13849-1
|
Level e
|
|
With monitoring function downstream switching devices
|
evet
|
|
Number of semiconductor outputs with signalling function
|
1
|
|
Number of contact energized outputs with signalling function
|
|
