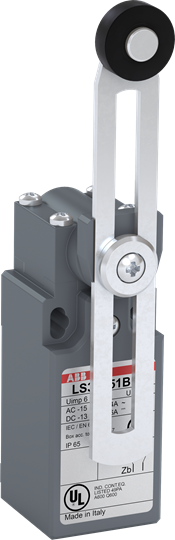

LS32P51B11 Limit Switch

Name: LS32P51B11 Limit Switch
Brand: ABB
SKU: 1SBV010351R1211

LS32P51B11 is a 30 mm wide, standard Limit Switch made of fiber-glass reinforced UL-V0 material, with 2 mounting holes at the top, 1 ISO M16x1.5 cable entry on the bottom, adjustable plastic roller lever (Ø18 mm) actuator and 1 N.O + 1 N.C snap action (Zb type) contacts

Ürün kimlikleri

SKU: 1SBV010351R1211

EAN: 3471522000453

GTIN: 3471522000453

MPN: LS32P51B11

Kategoriler

Building Controls & Automation Sensors Temperature Sensors Pressure Sensors

ETIM grubu

Sensors

Teknik özellikler

EFI07094	-
EFI07111	-
EFI07283	-
EFI07334	-
EFI07515	-\|-
Width sensor	30 mm
Forced opening	hayır
Coating housing	Other
Diameter sensor
Height of sensor	98.5 mm
Housing material	Plastic
Length of sensor	45.5 mm
Output electronic	hayır
Type of interface	None
Switching function	Quick-break switch
With status indication	hayır
Type of control element	Plunger
Construction type housing	Cuboid
Degree of protection (IP)	IP65
Degree of protection (NEMA)	-
Switching function latching	hayır
Type of electric connection	Cable entry metrical
Suitable for safety functions	hayır
Alignment of the control element	Other
Explosion safety category for gas	None
Explosion safety category for dust	None
Number of safety auxiliary contacts
Ambient temperature during operating	-25 - 70 °C
Number of contacts as change-over contact
Rated operation current Ie at AC-15, 24 V	10 A
Rated operation current Ie at DC-13, 24 V	6 A
Rated operation current Ie at AC-15, 125 V	5.5 A
Rated operation current Ie at AC-15, 230 V	3.1 A
Rated operation current Ie at DC-13, 125 V	0.6 A
Rated operation current Ie at DC-13, 230 V	0.4 A
Type of interface for safety communication	None
Number of contacts as normally open contact	1
Number of contacts as normally closed contact	1
