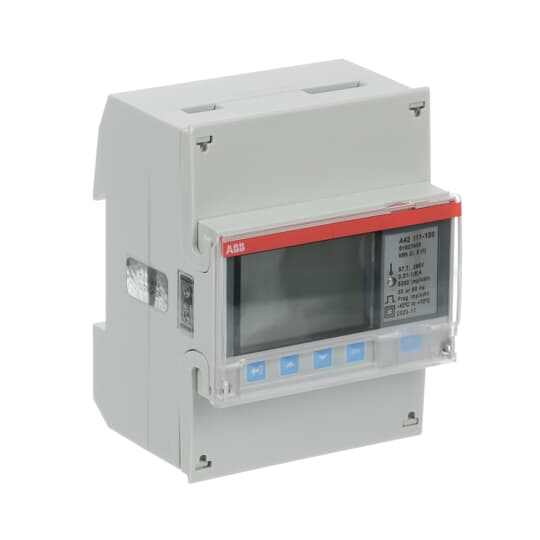

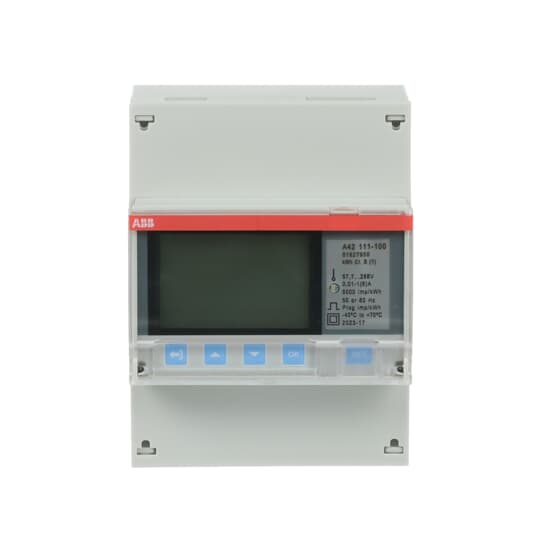

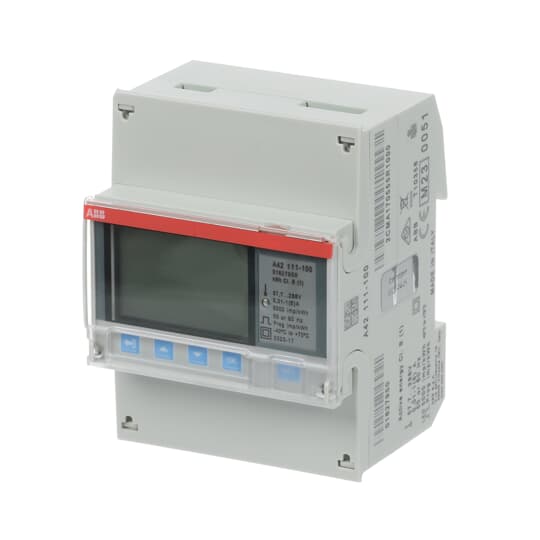

Energy meter 'Steel', IR port, Single-phase, 6 A
Advanced DIN-rail meter with a large and easy to read back lighted pixel-oriented display. The meter is intended for use in the industry, commercial buildings etc. The meter can be used in 3 or 4 wire systems with a wide voltage range. The meter has several instrumentation values, 25 possible alarms and event logs. Single phase transformer connectedfor active energy. One output for pulses or alarm etc. Accuracy class 1.0 (or B for MID meters). The meters is IEC approved + MID approved and verified.
Ürün kimlikleri
SKU: 2CMA170555R1000
EAN: 7392696705554
GTIN: 7392696705554
MPN: A42 111-100
Kategoriler
Özellikler
|
Depth
|
65 mm
|
|
Model
|
-
|
|
Width
|
70 mm
|
|
Height
|
26.5 mm
|
|
Approval
|
Measuring Instruments Directive
|
|
EFI00008
|
2.75590
|
|
EFI00040
|
1.043305
|
|
EFI00049
|
2.55905
|
|
Frequency
|
|
|
Pole type
|
Single phase
|
|
Calibrated
|
evet
|
|
Pulse rate
|
|
|
Pulse type
|
S0
|
|
Energy type
|
-
|
|
Tariff type
|
One-tariff
|
|
Pulse output
|
Electrical
|
|
Suitable for
|
-
|
|
Type of meter
|
Electronic
|
|
Accuracy class
|
B
|
|
Tariff control
|
-
|
|
With lock code
|
hayır
|
|
EEC40 signature
|
hayır
|
|
Mounting method
|
DRA (DIN-rail adapter)
|
|
Type of interface
|
Other
|
|
Type of indication
|
Digital
|
|
Max. current (Imax)
|
6 A
|
|
Escapement mechanism
|
evet
|
|
Nominal current (In)
|
6 A
|
|
Nominal voltage (Un) L-L
|
|
|
Nominal voltage (Un) N-L
|
|
|
Degree of protection (IP)
|
IP20
|
|
Degree of protection (NEMA)
|
-
|
|
Measurement type load profile
|
hayır
|
|
Number of positions total (counter)
|
7
|
|
Width in number of modular spacings
|
4
|
