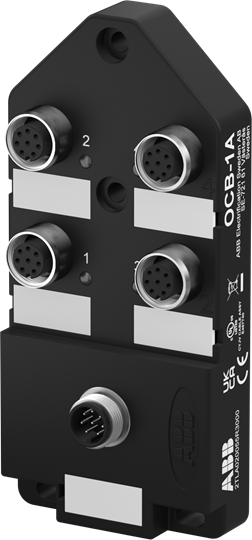

OCB-1A Connection Box

Name: OCB-1A Connection Box
Brand: ABB
SKU: 2TLA020055R3000

OCB-1A simplifies the connection of multiple sensors by only having one cable out from the control cabinet to the sensors. OCB-1A is a connection box for up to four Eden OSSD sensors with M12-8 pin connector, or other compatible safety sensors. Safety signals are connected in serial. Individual information signal from each Eden sensor. Blind plug JSOP-8 must be used on unused connectors. M12-8 pin connector for connection to the safety controller in the cabinet.

Ürün kimlikleri

SKU: 2TLA020055R3000

EAN: 7350024486520

GTIN: 7350024486520

MPN: OCB-1A

ETIM Group

Sensors

Videolar

Teknik özellikler

Width	54 mm
Height	118 mm
Length	28 mm
EFI00008	2.1259854
EFI00040	4.6456718
EFI01438	1.1023628
EFI02393	-13.0\|176.0
EFI07302	-\|-
EFI07319	-
EFI08200	-\|-
Rated voltage	24 V
Housing colour	Black
Housing material	Plastic
Pollution degree	2
Operating voltage	24 - 24 V
Max. total current	2 A
With LED indication	hayır
Material contact body	Copper
Operating temperature	-25 - 80 °C
Diameter contact female	-
Material insulation body	PBT
Degree of protection (IP)	IP67
With potential separation	hayır
Connection for NPN-sensors	hayır
Material of contact surface	Gold
Number of sensor-/actuator-slots	4
Type of connector for trunk line	M12
Explosion safety category for gas	None
Explosion safety category for dust	None
Connectable conductor cross section
Cable outer diameter for cable gland
Thread sleeves sensor/actuator slots	M12
Number of channels per connector slot	1
Number of poles sensor/actuator slots	8
Max. current carrying capacity per socket	2 A
Type of branches for sensor-/actuator cables	M12
Max. current carrying capacity per I/O signal	2 A
Fix cable version suitable for cable guide chain	hayır
