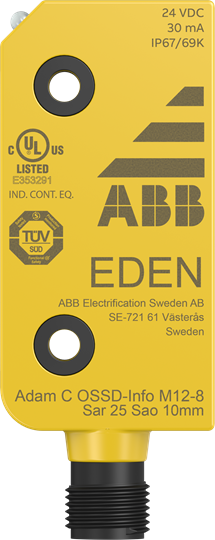

Adam C OSSD-Info M12-8 Sensor

Name: Adam C OSSD-Info M12-8 Sensor
Brand: ABB
SKU: 2TLA020051R5701

Adam safety sensor unit with OSSD signals and information output. M12-8 male connector, IP69K, yellow. 4pcs of DA 1B distance plates and 4pcs of DA 2B distance rings are included. Coated PCBA for extra protection in harsh environments.

Ürün kimlikleri

SKU: 2TLA020051R5701

EAN: 7350024486636

GTIN: 7350024486636

MPN: Adam C OSSD-Info M12-8

Kategoriler

Building Controls & Automation Sensors Temperature Sensors Pressure Sensors

ETIM grubu

Sensors

Teknik özellikler

EFI02386	-\|-
EFI03647	-
EFI04011	-
EFI04012	-
EFI07094	-
EFI07111	-
EFI07283	-
EFI07334	-
Voltage type	DC
Width sensor	30 mm
Coating housing	Uncoated
Diameter sensor	-
Height of sensor	75.2 mm
Housing material	Plastic
Length of sensor	12 mm
Type of actuation	Transponder
Switching distance	15 mm
Ambient temperature	-40 - 70 °C
Min. output current	-
With status indication	evet
Rated supply voltage DC	24 - 24 V
Type of switching output	PNP
Construction type housing	Special construction
Degree of protection (IP)	IP67
SIL according to IEC 61508	3
Degree of protection (NEMA)	-
Type of electric connection	Connector M12
Protected switch distance ON	10 mm
Protected switch distance OFF	25 mm
Rated supply voltage AC 50 Hz
Rated supply voltage AC 60 Hz
Suitable for safety functions	evet
Explosion safety category for gas	None
Explosion safety category for dust	None
Max. output current at protected output	0.05 mA
Mechanical mounting condition for sensor	Not flat
Number of protected semiconductor outputs	-
Type of interface for safety communication	Other
Cross-/short circuit identification possible	evet
Number of protected contact energized outputs	-
Performance level according to EN ISO 13849-1	Level e
With monitoring function downstream switching devices	evet
Number of semiconductor outputs with signalling function	1
Number of contact energized outputs with signalling function
