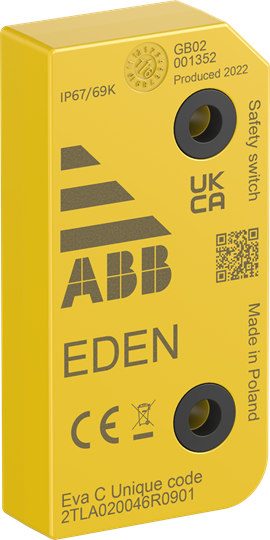

Eva C Unique code Actuator

Name: Eva C Unique code Actuator
Brand: ABB
SKU: 2TLA020046R0901

Eva actuator for use with Adam DYN and Adam OSSD sensors. With Eva Unique Code, the pair forms a high level coded non-contact safety sensor. 4 pcs of DA 2B spacer rings are included. Coated PCBA for extra protection in demanding environments.

Ürün kimlikleri

SKU: 2TLA020046R0901

EAN: 7350024486582

GTIN: 7350024486582

MPN: Eva C Unique code

Kategoriler

Building Controls & Automation Sensors Temperature Sensors Pressure Sensors

ETIM grubu

Sensors

Teknik özellikler

EFI02386	-\|-
EFI03647	-
EFI04011	-
EFI04012	-
EFI07094	-
EFI07111	-
EFI07283	-
EFI07334	-
Voltage type	-
Width sensor	30 mm
Coating housing	Uncoated
Diameter sensor	-
Height of sensor	60 mm
Housing material	Plastic
Length of sensor	12 mm
Type of actuation	Transponder
Switching distance	15 mm
Ambient temperature	-40 - 70 °C
Min. output current	-
With status indication	hayır
Rated supply voltage DC
Type of switching output	Other
Construction type housing	Special construction
Degree of protection (IP)	IP67
SIL according to IEC 61508	3
Degree of protection (NEMA)	-
Type of electric connection	Other
Protected switch distance ON	10 mm
Protected switch distance OFF	25 mm
Rated supply voltage AC 50 Hz
Rated supply voltage AC 60 Hz
Suitable for safety functions	evet
Explosion safety category for gas	None
Explosion safety category for dust	None
Max. output current at protected output	-
Mechanical mounting condition for sensor	Not flat
Number of protected semiconductor outputs	-
Type of interface for safety communication	-
Cross-/short circuit identification possible	evet
Number of protected contact energized outputs	-
Performance level according to EN ISO 13849-1	Level e
With monitoring function downstream switching devices	-
Number of semiconductor outputs with signalling function	-
Number of contact energized outputs with signalling function	-
