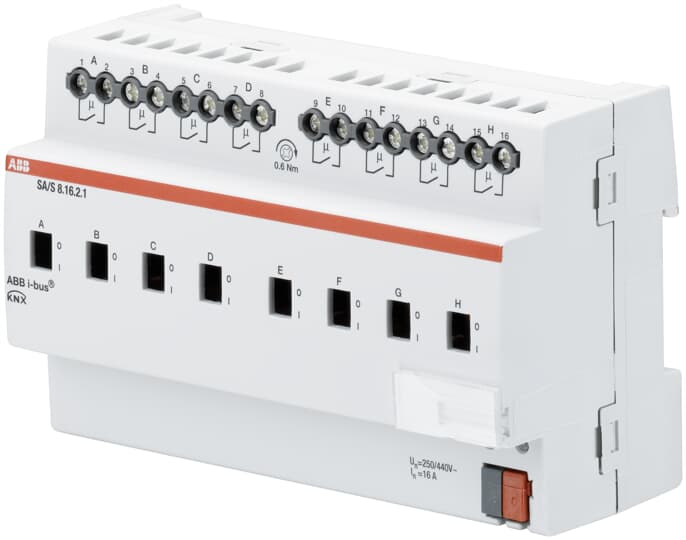

SA/S8.16.2.1 Switch Actuator, 8-fold,

Name: SA/S8.16.2.1 Switch Actuator, 8-fold,
Brand: ABB
SKU: 2CDG110161R0011

Uses potential free contacts to switch 8 independent electrical loads via the ABB i-bus®. Manual operation and display of the switching state of the contacts. The 16A-AC1 device is especially suited for resistive loads.

Ürün kimlikleri

SKU: 2CDG110161R0011

EAN: 4016779877770

GTIN: 4016779877770

Kategoriler

Building Controls & Automation PLCs

ETIM Group

Installation bus systems

Teknik özellikler

EFI12278	2.539365
Output power	2500 W
Rated current	16 A
Bus system KNX	evet
Bus system LON	hayır
Mounting method	DRA (DIN-rail adapter)
Other bus systems	None
Power consumption	-
Bus system Powernet	hayır
Suitable for C-load	hayır
With LED indication	evet
With bus connection	evet
Max. switching power	2500 W
Bus module detachable	hayır
Modular expandability	hayır
Max. switching current	16 A
Rated operating voltage	230 - 230 V
Max. switching power LED	-
Number of digital inputs	-
Degree of protection (IP)	IP20
Bus system radio frequency	hayır
Different phases connectable	evet
Radio frequency bidirectional	-
Local operation/hand operation	-
Max. number of switching contacts	8
Bus system KNX-RF (Radio Frequency)	hayır
Width in number of modular spacings	8.0
Min. depth of built-in installation box	64.5 mm

Belgeler

Deeplink product page
Dimensioned drawing
Instructions for use
Product data sheet
Declaration DOC CE (Declaration of conformity CE)
