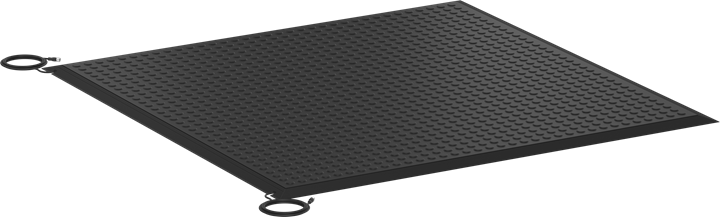

ASK-1T4.4-NP 1x1 Safety mat

Name: ASK-1T4.4-NP 1x1 Safety mat
Brand: ABB
SKU: 2TLA076310R1100

ASK-1T4.4-NP 1x1 is a safety mat with cast-in ramp edge trim. The safeguarded area is 1000 x 1000 mm. Equipped with 2 x 5 m cables (2 x 0.34 mm2 - PU sheathed), each with a M8 male connector.

Ürün kimlikleri

SKU: 2TLA076310R1100

EAN: 7350024461879

GTIN: 7350024461879

MPN: ASK-1T4.4-NP 1x1

Kategoriler

Building Controls & Automation Sensors Pressure Sensors Temperature Sensors

ETIM grubu

Sensors

Teknik özellikler

Model	Safety mat
Width	1000 mm
Colour	Black
Height	10 mm
Length	1000 mm
EFI00008	39.37000
EFI00040	0.39370
EFI01438	39.37000
EFI02386	14.0\|131.0
EFI03636	16.404199475
Material	Polyurethane (PUR)
With edge trim	evet
Ambient temperature	-10 - 55 °C
Max. current (Imax)	0.100 A
Max. force per cm²	-
Connection cable length	5 m
Condition analysis system	-
Degree of protection (IP)	IP65
Max. operating voltage (Umax)	24 V
Max. force with 80 mm diameter	2000 N
Number of contacts as change-over contact	-
Number of contacts as normally open contact	-
Required switching force with 80 mm diameter	150 N
Number of contacts as normally closed contact	-
Number of semiconductor outputs with signalling function	-
