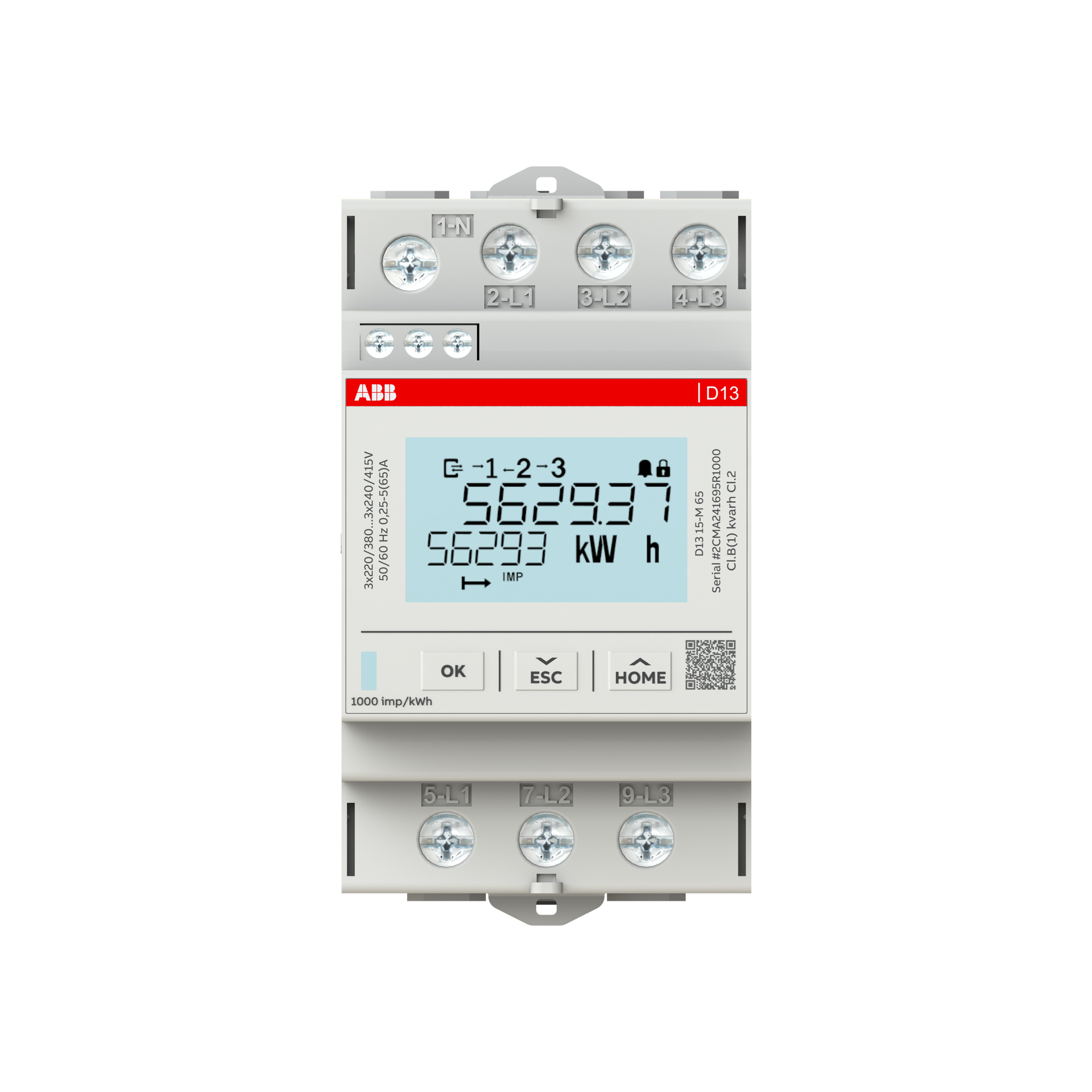

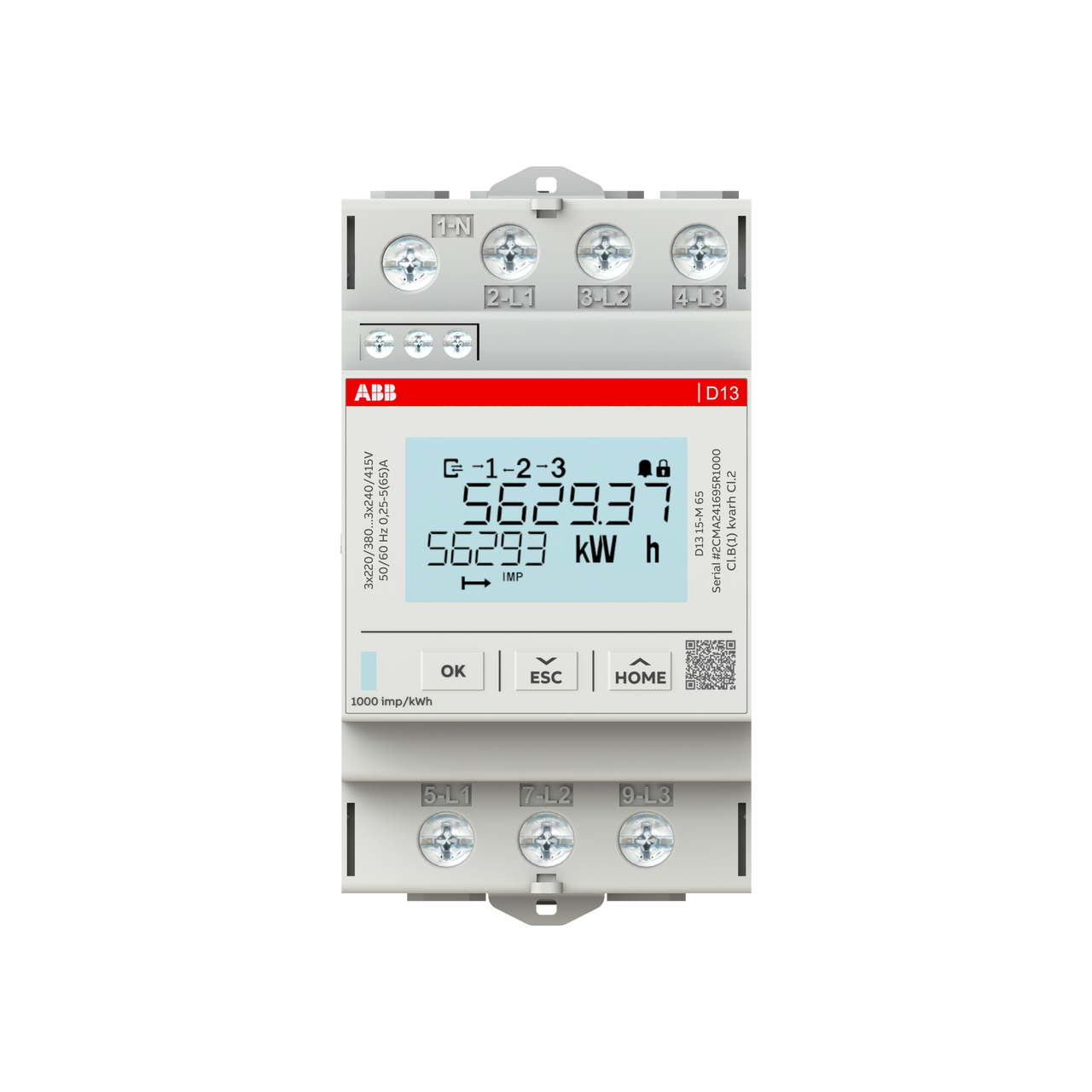

Energy meter '15', Other, 3-phase, 65 A – Görsel 2 / 4

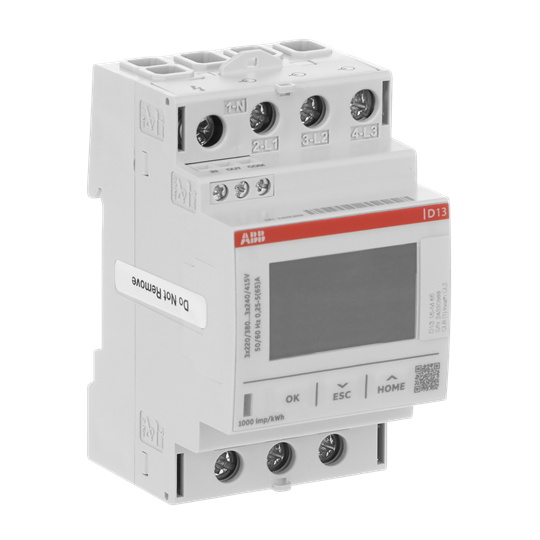

Energy meter '15', Other, 3-phase, 65 A – Görsel 3 / 4

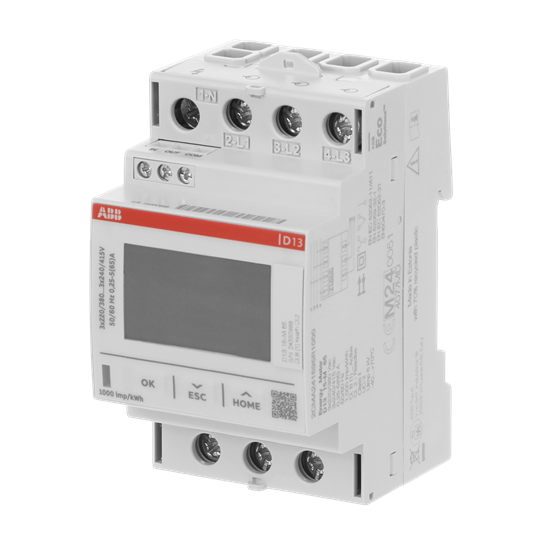

Energy meter '15', Other, 3-phase, 65 A – Görsel 4 / 4

1 / 4

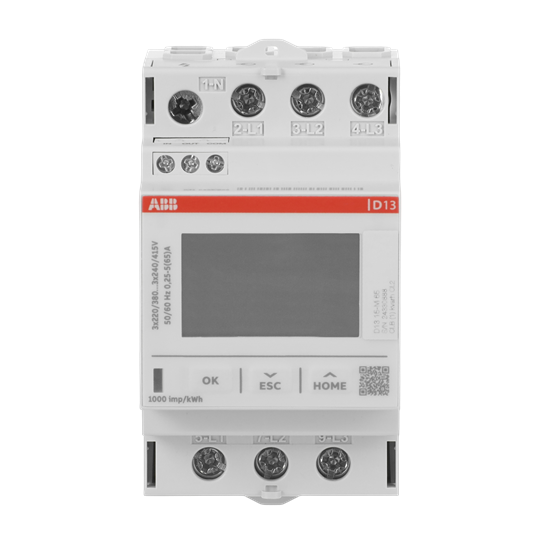

Energy meter '15', Other, 3-phase, 65 A

Name: Energy meter '15', Other, 3-phase, 65 A
Brand: ABB
SKU: 2CMA241695R1000

D13 15-M 65 is a three phase energy meter, direct connection up to 65 A, four quadrant metering, class B accuracy for active energy according to MID directive and class 2 for reactive energy according to IEC 62053-23, one digital input and one digital output, only three DIN module in width and housing in recycled plastic.

Ürün kimlikleri

SKU: 2CMA241695R1000

EAN: 8012542635956

GTIN: 8012542635956

MPN: D13 15-M 65

Kategoriler

Building Controls & Automation Energy Monitoring Systems

ETIM grubu

Meters

Teknik özellikler

Depth	65 mm
Model	Direct measurement
Width	52.5 mm
Height	97 mm
Approval	Measuring Instruments Directive
EFI00008	2.066925
EFI00040	3.81889
EFI00049	2.55905
Frequency	50 - 60 Hz
Pole type	Four conductor
Calibrated	-
Pulse rate
Pulse type	S0
Energy type	-
Tariff type	Multi-tariff
Pulse output	Electrical
Suitable for	-
Type of meter	Electronic
Accuracy class	B
Tariff control	Internal/external
With lock code	evet
EEC40 signature	-
Mounting method	DRA (DIN-rail adapter)
Type of interface	Other
Type of indication	Digital
Max. current (Imax)	65 A
Escapement mechanism	-
Nominal current (In)	65 A
Nominal voltage (Un) L-L
Nominal voltage (Un) N-L
Degree of protection (IP)	IP20
Degree of protection (NEMA)	-
Measurement type load profile	-
Number of positions total (counter)	7
Width in number of modular spacings	3
