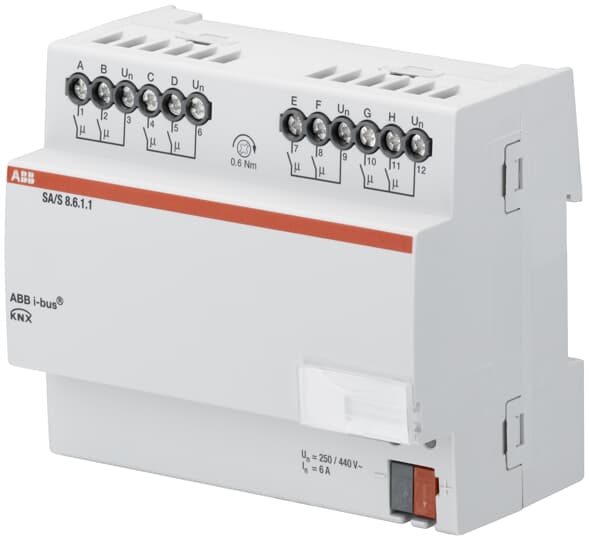

SA/S8.6.1.1 Switch Actuator, 8-fold, 6 A, MDRC

Name: SA/S8.6.1.1 Switch Actuator, 8-fold, 6 A, MDRC
Brand: ABB
SKU: 2CDG110153R0011

Uses potential free contacts to switch 8 independent electrical loads via the ABB i-bus®. Every 2 contacts have a common supply phase. The 6A-AC3 device is especially suited to switch resistive, inductive or capacitive loads.

Ürün kimlikleri

SKU: 2CDG110153R0011

EAN: 4016779877855

GTIN: 4016779877855

MPN: SA/S8.6.1.1

Kategoriler

Building Controls & Automation PLCs

ETIM Group

Installation bus systems

Teknik özellikler

EFI12278	2.539365
Output power	1380 W
Rated current	6 A
Bus system KNX	evet
Bus system LON	hayır
Mounting method	DRA (DIN-rail adapter)
Other bus systems	None
Bus system Powernet	hayır
Suitable for C-load	hayır
With LED indication	hayır
With bus connection	hayır
Max. switching power	1200 W
Bus module detachable	hayır
Modular expandability	hayır
Max. switching current	6 A
Rated operating voltage	230 - 230 V
Max. switching power LED	-
Number of digital inputs	-
Degree of protection (IP)	IP20
Bus system radio frequency	hayır
Different phases connectable	evet
Radio frequency bidirectional	hayır
Local operation/hand operation	hayır
Max. number of switching contacts	8
Bus system KNX-RF (Radio Frequency)	hayır
Width in number of modular spacings	6
Min. depth of built-in installation box	64.5 mm
