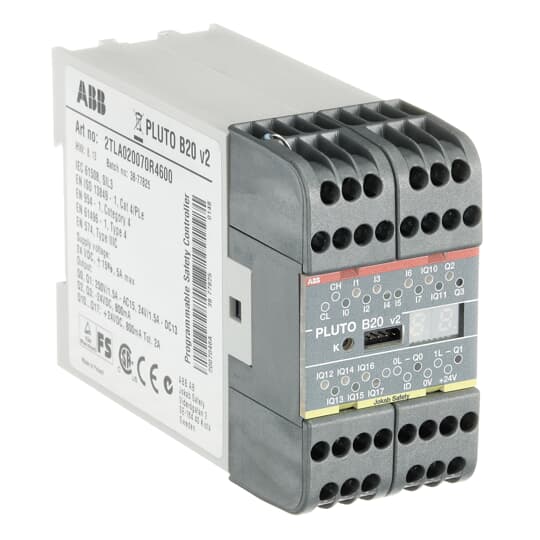

Pluto B20 v2 Programmable safety controller

Pluto B20 v2 Programmable safety controller

Pluto is a cost effective, powerful and compact safety PLC for all machine safety applications. Most safety devices on the market can be connected directly to Pluto and multiple safety sensors can be connected to a single input and still achieve the highest safety level. Programming is done easily in the accompanying software Pluto Manager. Safety PLC with Pluto safety bus. Totally 20 I/O: 8 failsafe inputs + 8 non-failsafe outputs/failsafe inputs + 2 individually failsafe relay outputs + 2 individually failsafe transistor outputs.

Ürün kimlikleri

SKU: 2TLA020070R4600
EAN: 7320500410547
GTIN: 7320500410547
MPN: Pluto B20 v2

Videolar

Teknik özellikler

Depth 120 mm
Model Compact
Width 45 mm
Height 84 mm
EFI00008 -
EFI00040 -
EFI00049 -
Redundancy evet
With display evet
Type of memory FLASH
Supply voltage DC 24 - 24 V
Radio standard GPRS hayır
Rack-assembly possible hayır
Front built-in possible hayır
Supply voltage AC 50 Hz
Number of digital inputs 16
Long-Term Evolution (LTE) hayır
Number of digital outputs 12
Radio standard WLAN 802.11 hayır
Suitable for rail mounting evet
Supporting protocol for ASI hayır
Supporting protocol for KNX hayır
Max. number of time switches 256
Number of HW-interfaces other 1
Suitable for safety functions evet
Wall mounting/direct mounting hayır
Number of HW-interfaces RS-422
Supporting protocol for Modbus hayır
Supporting protocol for TCP/IP hayır
Number of HW-interfaces parallel
Supporting protocol for EtherCAT hayır
Supporting protocol for PROFIBUS evet
Appendant operation agent (Ex ib) hayır
Supporting protocol for DeviceNet hayır
Supporting protocol for PROFIsafe hayır
Explosion safety category for dust None
Supporting protocol for PROFINET IO hayır
Supporting protocol for Data-Highway hayır
Processing time (1K, binary operation) 1 ms
Supporting protocol for DeviceNet Safety hayır
Supporting protocol for IEC 61850 Ethernet hayır
Number of HW-interfaces industrial Ethernet
Certified for UL hazardous location class II hayır
Performance level according to EN ISO 13849-1 None
Certified for UL hazardous location division 2 hayır
Certified for UL hazardous location group D (propane) hayır
Certified for UL hazardous location group C (ethylene) hayır
Certified for UL hazardous location group E (metal dusts) hayır
Certified for UL hazardous location group G (non-conductive dusts) hayır
