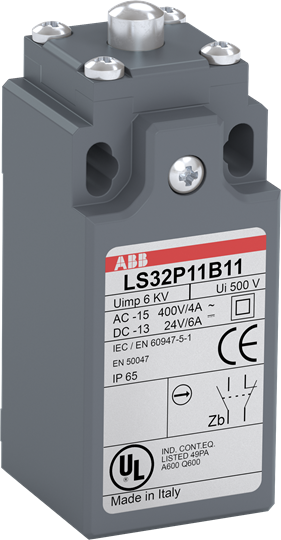

LS32P11B11 Limit Switch

Name: LS32P11B11 Limit Switch
Brand: ABB
SKU: 1SBV010311R1211

LS32P11B11 is a 30 mm wide, standard Limit Switch made of fiber-glass reinforced UL-V0 material, with 2 mounting holes at the top, 1 ISO M16x1.5 cable entry on the bottom, plain steel plunger actuator and 1 N.O + 1 N.C snap action (Zb type) contacts

Ürün kimlikleri

SKU: 1SBV010311R1211

EAN: 3471522000378

GTIN: 3471522000378

MPN: LS32P11B11

ETIM Group

Sensors

Teknik özellikler

EFI07094	-
EFI07111	-
EFI07283	-
EFI07334	-
EFI07515	-\|-
Width sensor	30 mm
Forced opening	hayır
Coating housing	Other
Diameter sensor
Height of sensor	73 mm
Housing material	Plastic
Length of sensor	30 mm
Output electronic	hayır
Type of interface	None
Switching function	Quick-break switch
With status indication	hayır
Type of control element	Plunger
Construction type housing	Cuboid
Degree of protection (IP)	IP65
Degree of protection (NEMA)	-
Switching function latching	hayır
Type of electric connection	Cable entry metrical
Suitable for safety functions	hayır
Alignment of the control element	Other
Explosion safety category for gas	None
Explosion safety category for dust	None
Number of safety auxiliary contacts
Ambient temperature during operating	-25 - 70 °C
Number of contacts as change-over contact
Rated operation current Ie at AC-15, 24 V	10 A
Rated operation current Ie at DC-13, 24 V	6 A
Rated operation current Ie at AC-15, 125 V	5.5 A
Rated operation current Ie at AC-15, 230 V	3.1 A
Rated operation current Ie at DC-13, 125 V	0.6 A
Rated operation current Ie at DC-13, 230 V	0.4 A
Type of interface for safety communication	None
Number of contacts as normally open contact	1
Number of contacts as normally closed contact	1
